. Rivista americana di ingegnere e ferrovia. X 10 pollici. CALDAIA. Stile Belpaire pressione di esercizio 205 in. Diametro esterno del primo anello 71 in-Firebox, lunghezza e larghezza 107% x 66 in. Piastre focolare, spessore 5-16, %, % in. Focolare, spazio acqua • • 5 Ins Tubi, numero e diametro esterno 373, 2" Tubi, lunghezza 13 piedi 9% ins. Superficie di riscaldamento, tubi 2,6T1 sq J! Superficie di riscaldamento, caminetto da 18 m2 Superficie riscaldante, totale 2.859 m2 Area grata di 49.11 m2. OFFERTA. Telaio fondo serbatoio d'acqua oo^Fee Wneels. Diametro 33 pollici Perni di banco, diametro e lunghezza 6% x 1°, capacità acqua ■nno SA,s carbone

• Collaboratore: Reading Room 2020
• ID dell’immagine: 2CR6D2A
• Dimensioni dei file: 7,1 MB (183,3 KB Download compresso)
• Liberatorie: Modello - no | Proprietà - no
• Dimensioni: 2776 x 900 px | 23,5 x 7,6 cm | 9,3 x 3 inches | 300dpi

Altre informazioni

Questa immagine potrebbe avere delle imperfezioni perché è storica o di reportage.

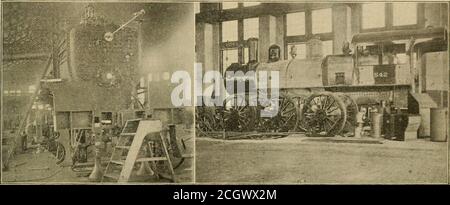

. American engineer and railroad journal . x 10 ins. BOILER. Style Belpaire Working pressure 205 ins. Outside diameter of first ring 71 ins-Firebox, length and width 107% x 66 ins. Firebox plates, thickness 5-16, %, % in. Firebox, water space • • 5 Ins. Tubes, number and outside diameter 373, 2-in. Tubes, length 13 ft. 9% ins. Heating surface, tubes 2, 6T1 sq J! Heating surface, firebox 18- sq. ft. Heating surface, total 2.859 sq. ft. Grate area 49.11 sq. ft. TENDER. Tank Waterbottom Frame oo^fee Wneels. diameter 33 ins. Journals, diameter and length 6% x 1° , IJa- Water capacity ■nno Sa, s Coal capacity 14 t0DS SEMI-ELLIPTIC SPRINGS FOR LOCOMOTIVES ANDTENDERS. By William H. Mussey. The proper design of locomotive and tender springs is avery important factor in securing the best results from theheavy motive power which has come into use. They are inmany cases made to fit the design of frame, boiler, etc., andeven then are not always given the attention they should have.Several years ago the writer made a number of tests to. determine just what loads driving springs were subjected toin service. A recorder was made, as shown in the illustration, to register the deflections produced by service conditions.Ample play was allowed at C and D and a moving fit at A andB. The pointer was threaded and the tension on the platewas regulated, as desired, by hand. At times a check nutwas placed on the pointer, bearing against the inverted U-shaped section of the rod, to guard against its screwing inor out. With the recorder in place and the engine on a level track, a horizontal line was drawn to designate the static load. Thesprings had all been tested, before being applied, both forfree height (set), static working load and a test load, so thatthe loads corresponding to the various heights were known.The horizontal line, which was used as a basis for the test, was found to check closely with the height obtained for thestatic working load by the manufacturer. The marks madeon the
